SJ-1802TX旗帜机发色整套设备一体式

2017-6-14

 SJ-1802TX旗帜机发色机设备一体式



Specifications/参数

Model No.型号

signstar-sj1802TX

Printhead喷头

Epson DX5/5113 print head

Color颜色

Double 4 Color (C- M- Y- K)4

Shade of color组合颜色

16.7 million

Printing Resolution精度

1440dpi * 1440dpi maximum

Print Width打印尺寸

1.8m

Print Speed

(dx5打印速度平方每小时)



56 sq. m./h          2 pass

28 sq. m./h          4 pass

19 sq. m./h          6 pass

14 sq. m./h          8 pass

Ink墨水

sublimation分散墨水

Media打印材料

Flag旗帜面料

Media handing面料处理方式

Roll to roll卷对卷

Heating System发色系统

temperature to 180°C-220℃最适温度

Rip Software软件

Photoprint 11.0, Maintop

Driver驱动

Professional bi-language software (Chinese & English)中英

Interface接口

USB 2.0, RS 232

Operation System操作系统

Windows XP, windows2000

Input Power电流

AC 220-240V 50/60 HZ  15A

Working Environment打印环境

Temperature温度:20-25 °C, Humidity湿度: 40%-70%

packaging包装尺寸

Printer: L*W*H : 3.38*0.75*1.03m

Heater: L*W*H : 3.25*1.23*0.935m



Flag printing printer advantages旗帜机的优点

All-in-one machine can achieve high productivity by printing and heating simultaneously

Achieve maximum perfect vivid colors, heated as evenly as possible

Stable and simple process comes true so that achieve high effiency

一体化机器设计实现了打印发色同步进行从而提高了产能;

一体化机器设计使发色均匀从而得到艳丽的色彩;

一体化机器设计工艺简单,最大的简化了流程从而得到最大效率

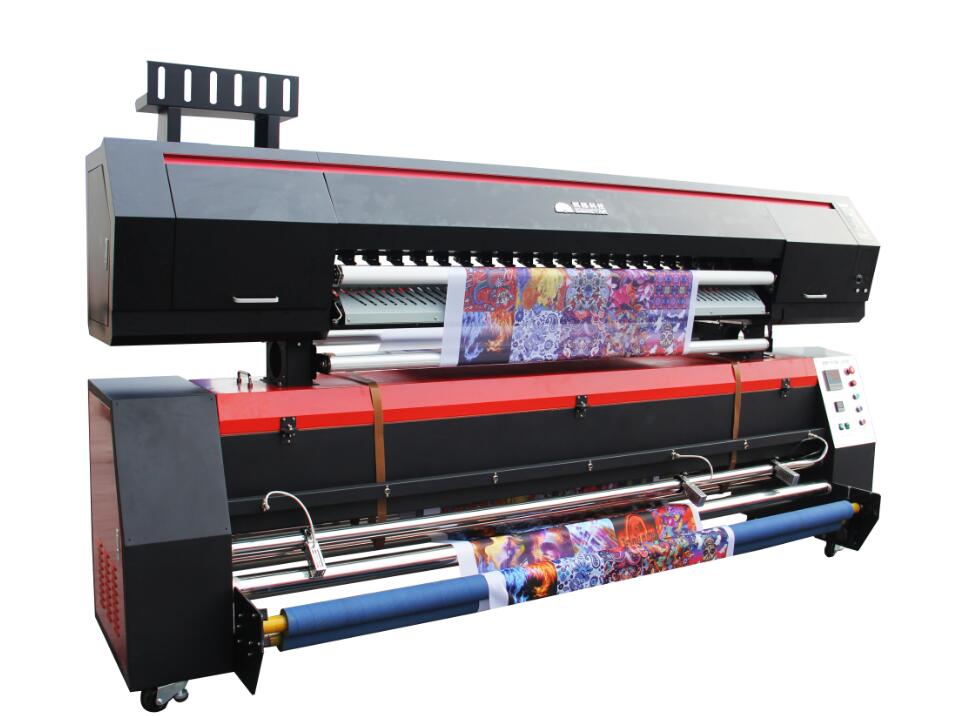

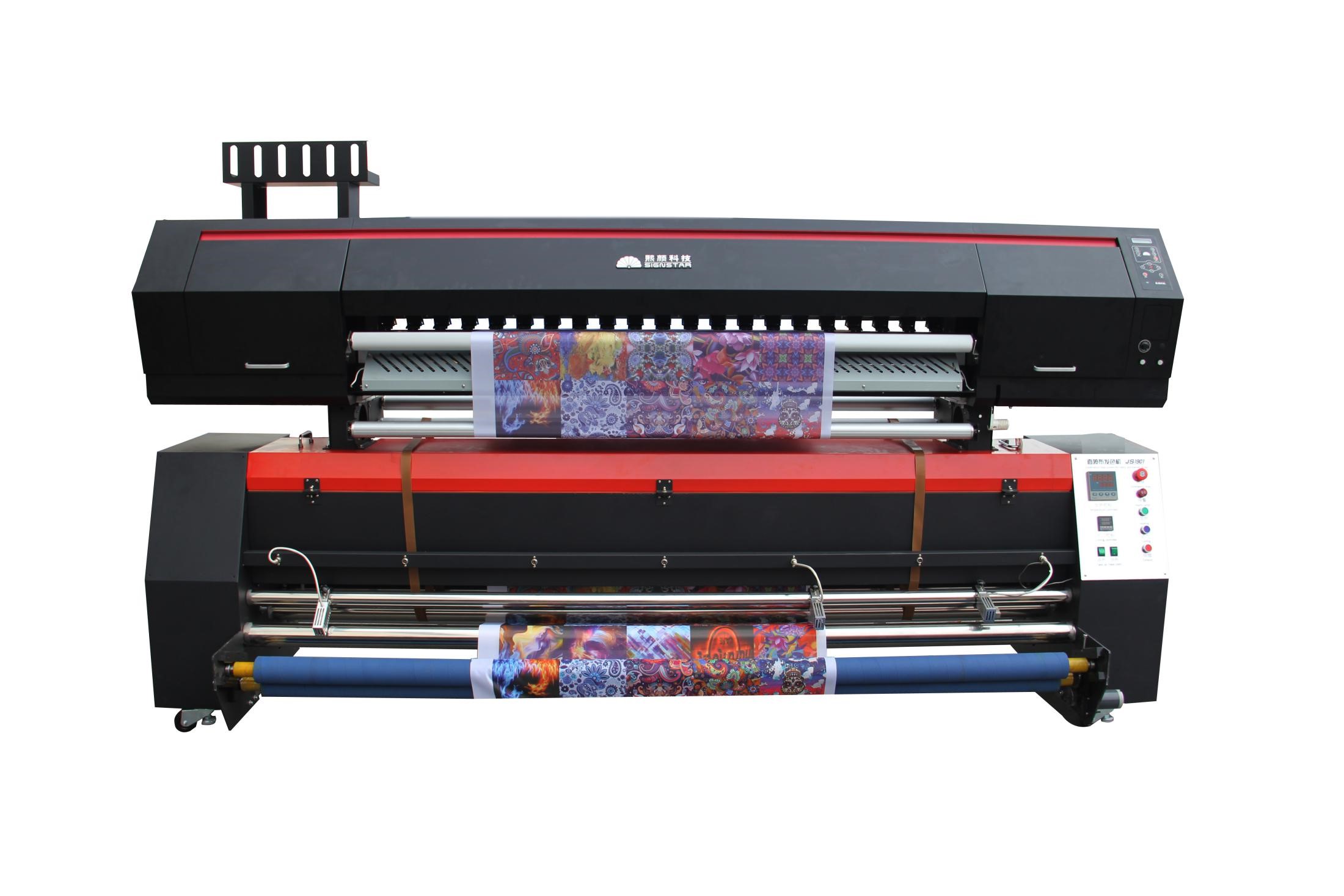

2. Machine structure : 1.8m printer + heater (with filter)机器结构:打印机+发色机

> Signstar Flag printing printer SJ-1802TX with DX5/5113 printhead;

SJ-1802TX本款机型可配备高精度稳定的Epson Dx5喷头或高产能高效能的Epson5113喷头



it is composed of two parts: the upper printer and the heater(color fixer machine) with filter;

整套设备由打印机和发色机(内置排烟系统)两大部分组成

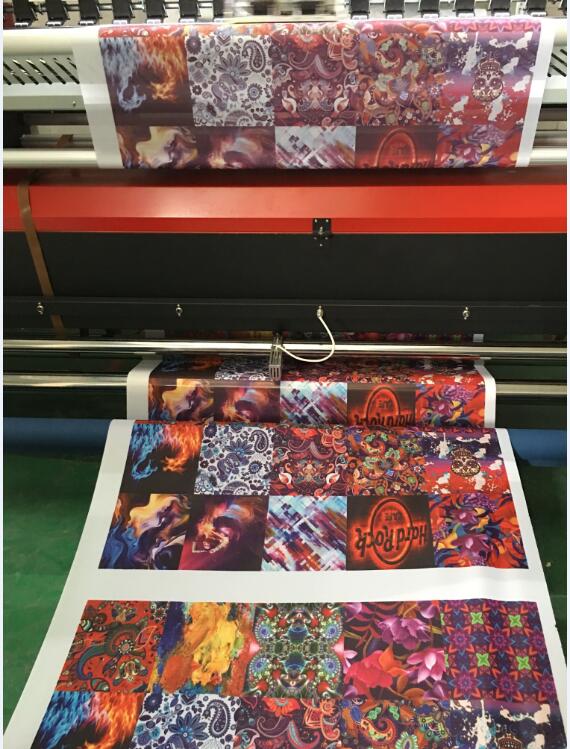

The printing process is firstly print on fabric, then fabric transfer to heater;

工作流程:布匹先经由打印机完美打印,打印完直接传送进入发色机进行高温发色,发色完成输出布料,整个流程完毕。



By turning on  the Heating switch,and set the fix temperature at 160-220,after heated, the work finish.

根据打印面料的厚薄程度,将“温控仪表”预设温度设置为最佳发色温度;机温从(160220℃)可调,可实现对温度的智能化控制









For flag fabric which is made of penetrable material, using Groove-designed platform to collect and flow out the waste ink;

Equipped with infrared heating to dry fabric in advance so that avoid fabric being polluted

针对旗帜面料是有渗透性的特性,我们采取凹槽式平台设计,以便收集渗透过面料的废墨;

旗帜打印机机配备了红外加热系统,可快速烘干打印面料上的墨水;

双重保护措施在最大程度上的保证面料在传动的过程中不被污染







1) Heater --color fixer machine 发色机

Infrared light for pre -heating in order to avoid the ink stain during the media transportation;

旗帜机红外装置对材料进行预热处理,防止面料污染

 intelligent temperature controller, auto collection speed control panel, emergency stop button for client’s easy operation;

温控仪,收料速度控制面板,紧急按钮设计都是为了客户方便使用

Filter,Inside the heater , draws out the waste heating gas to assurance print under  environment without pollution.

鼓风机安装在发色机内测,目的在于处理发色过程中产生的废气,从而保证了很好的打印环境



4. Media feed system

放料系统

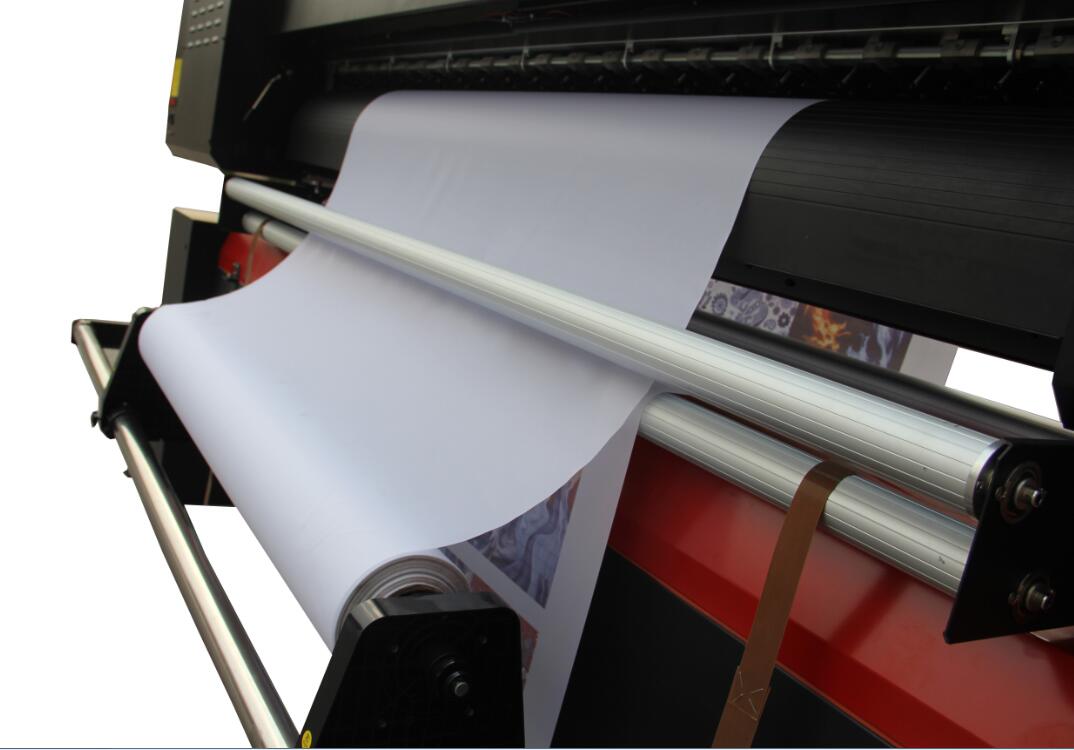

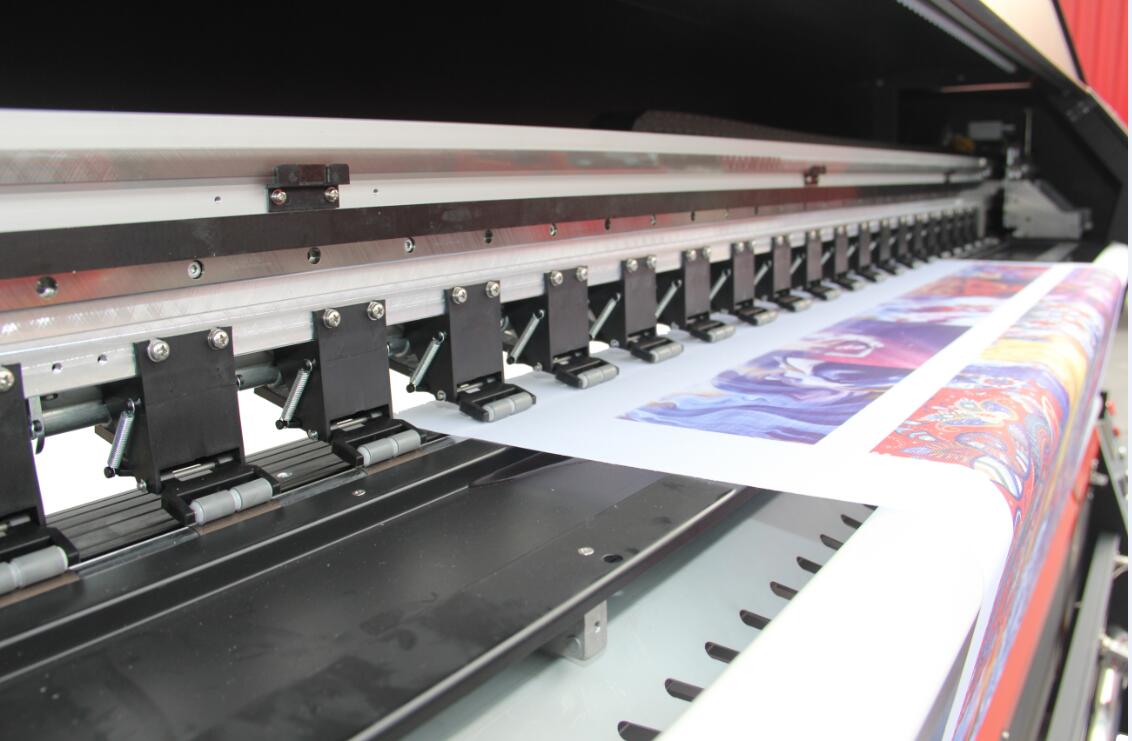

Using good tension rolls for fabric to keep move smoothly and straightly during these four processes:feeding , printing ,heating and taking up.

使用摆杆张力系统,通过利用摆杆的张力从而达到面料在放料、打印、发色和收料过程中始终保持最佳打印状态和稳定的材料传输,进而确保了高精度打印

Using the strong feeding roller for loading heavy media which can save labor cost and time for changing media .


使用高质量的放料杆可承受高重量的的面料进而节省了换料的时间和人工成本

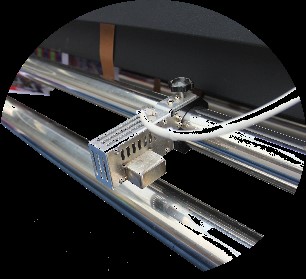

5. Intelligent function --  cut -off device智能化功能 自动裁边

cut-off device which can cut the media automatically so that to save labor cost;

自动裁边代替人工裁边从而节省人力成本

This new fuction is specially for batched production which require printing edge cutting, improve cutting quality and effiency to a large extent;

自动裁边的新功能主要目的在于大批量生产时裁边需求,最大程度上的提高裁边质量和效率

Cut-off device should heat up to 250 to make perfect cutting.

自动裁边装置需要加热到250摄氏的温度后工作,从而保证了裁切过程中面料不被拉丝,提高了切割的质量



6. Heater --color fixer machine 发色机

Fixer,equipped with intelligent temperature controller, auto collection speed

control panel and emmergence stop button provides clients with connvenient operation;

发色机,集成化和人性化地配备了智能温控仪,自动收料控制面板和紧急暂停按钮,最大程度上的给予客户使用便利性



smoke extract fan,Inside the heater ,saves hosting space and improves the effience of drawing out the waste heating gas so that  assure printing under favourable environment without pollution.

排烟机,完美的演绎了简约化的现代装配理念,内置废气排放装置,有效地提高了废气排放的效率,也有效的节约占地空间
